Holden VS
5.0ltr

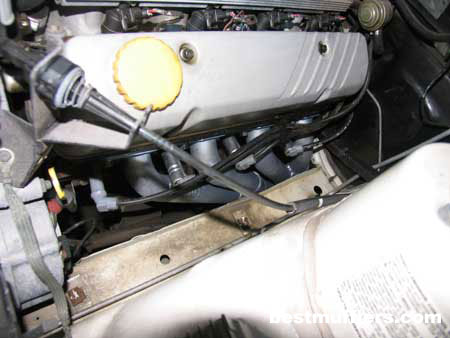

Pacemaker Headers PH5002 were used to ensure plenty of gas flow, these headers are one the best off the shelf headers available for this application [move over image]

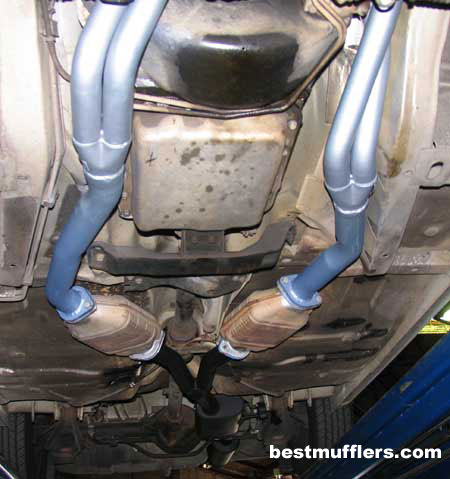

The pacemaker headers are placed in our
jig and the 2 1//2" conecting pipes to the catalytic converters are welded in position.
In this application we are reusing using the factory cat on the passenger side, the drivers side cat is a as new second hand unit from
a wreckers,from the cats back we can run a twin system or a single system, in this case where running a 3" single, from the cats back the twin 2 1/2" pipe collect into our 3" free flowing system using berklee mufflers



at the rear of the front muffler the exhaust is flanged to ensure easy removal of the exhaust system if required

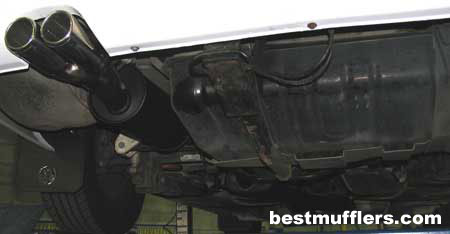

The twin 3" tips fit the car perfectly

Sound File
