MUSTANG
1969
1969
Ford Mustang
Engine by: Total Engine Services
Jeff Wright Ph 95214366
.351 windsor stroked to 408ci
.Victor Junior alloy heads
Brarry Grant 850 Demon
.Tremec 5 speed gearbox
.RRS steering rack conversion
.approx 470hp/500hp 500ft lb Torque
Extractors 4-1 Tuned Length
Step-Up Design
: Tig welded
: Step
Up Flange Plates
: 1 3/4" Runners 30" long
: Primary Overall length 30"
: Slip on Collectors 3 1/2" outlet
: Ceramic Coated [inside and out]
: No gaskets required
All our custom headers
are made so the firing order is in sequence, while
keeping all pipes in the correct firing order
and length
The exhaust system made
for this car is
polished 2 1/2" stainless steel [mirror finish]

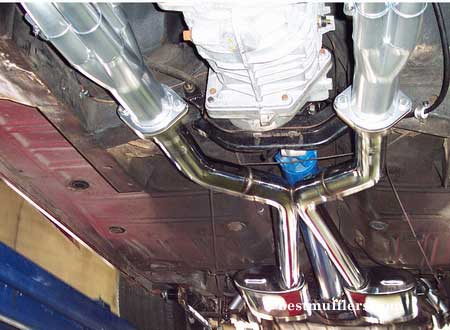

The "X" System
The exhaust gases from left and right extractor
mix in the x section,this evens out the exhaust
gas back pressure ,giving the engine a much smoother
note, A slight reduction in overall diameter in
the x area, the exhaust gas speed increases through
the x which helps [slightly] by creating a scavenging
effect

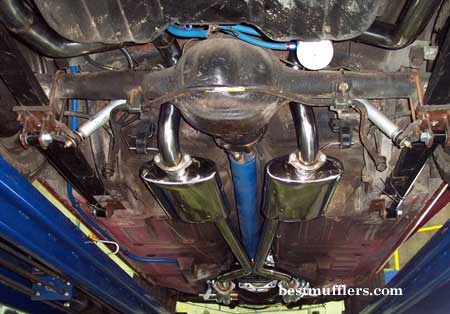

The complete
system is tig welded not mig welded this ensures
a precise quality finish
By using flanges, in this case stainless steel between
the mufflers and tailpipes you can just unbolt the
exhaust system very easily

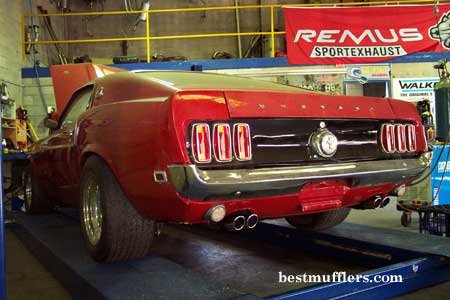

2 1/2" tailpipes finish this system
We used the new blue
diamond chrome plated stainless steel exhaust
extensions
to finish off. They look great !
The best engines need the
BEST EXHAUST SYSTEMS
