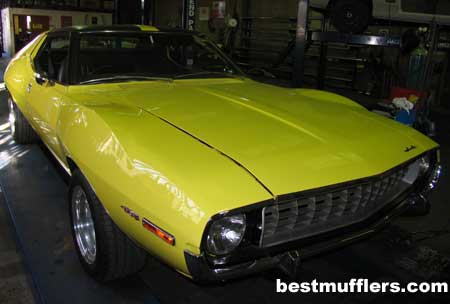

AMX Javlin
401GMC

Custom Headers

Extractors 4-1 Tuned Length
Step up Headers
: Tig welded
: No gaskets required
: 1 3/4" Runners 12" long
:1 7/8" Runners 24" long
: Slip on 3 1/2" Collectors



move over image

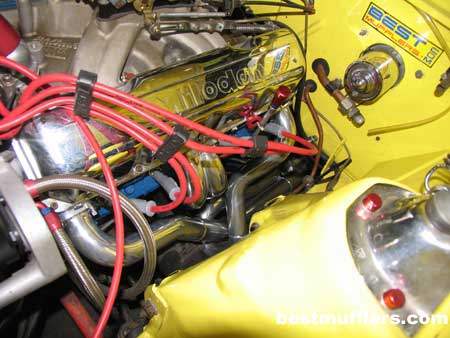

The drivers side needs to clear the steering shaft, starter motor while keeping all pipes in the correct firing order and length.
When making custom pipes i always make the hard side first, [most cases drivers side]



The header flanges are perfectly port matched then machined finished, with no gaskets fitted all thats required is a smeer
of exhaust sealant to get a perfect seal

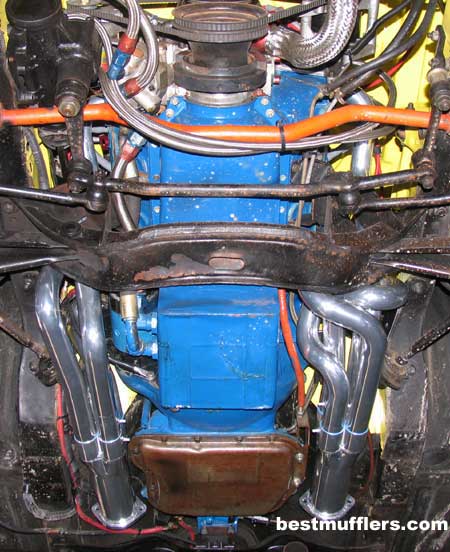

All our custom headers are made so the firing order is kept in sequence,

move over image

Slip on collectors

interlocking flanges

The twin 2 1/2" system has been reused
until later when the exhaust system will
be upgraded to a 3" x-system
