JENSEN INTERCEPTOR
custom exhaust system specialists

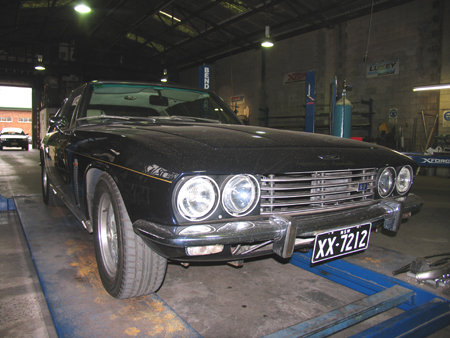

Jenson Interceptor

Jensen Interceptor SP
1974 MK3 7.2ltr

Custom Headers

Extractors Try/y design
: Tig welded
: Merge Collectors
: 1 3/4" Primary pipes 17" long
:2" Secondary pipes 24" long
: Interlocking Flanges [no gaskets]

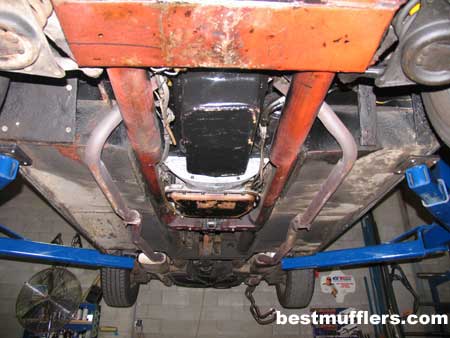

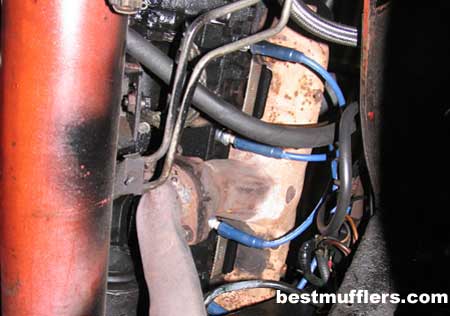

Getting rid of the original cat iron manifolds
is the first thing we need to do

Move Over Image

Move Over Image

With very little room to work in and no ground clearance i decided to make try/y design headers on this car with merge collectors instead of the slip on style

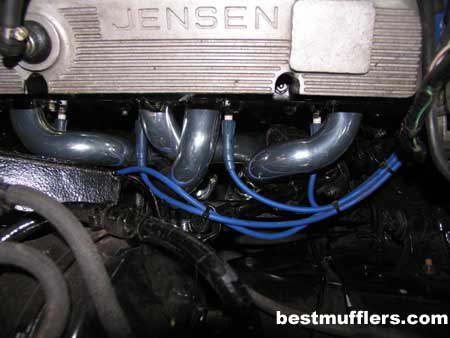

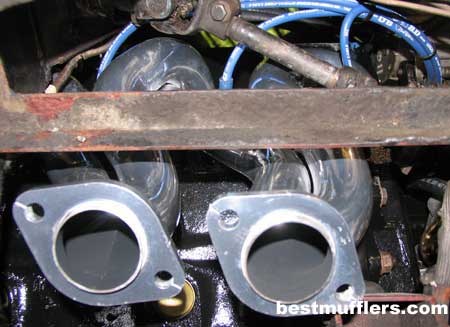

When making custom pipes i always make the hard side first, [most cases drivers side]

Move Over Image

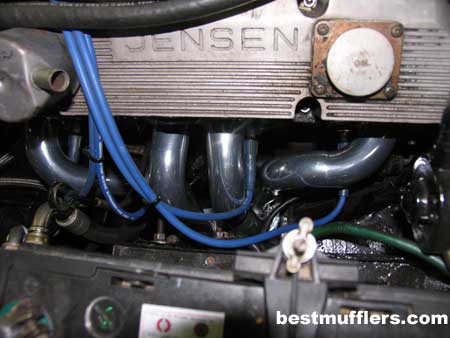

the left side has more room but the headers needs to flow the same as the right side and look similar

Move Over Image

i have used interlocking flanges so there will be no gaskets required at these joints

Move Over Image

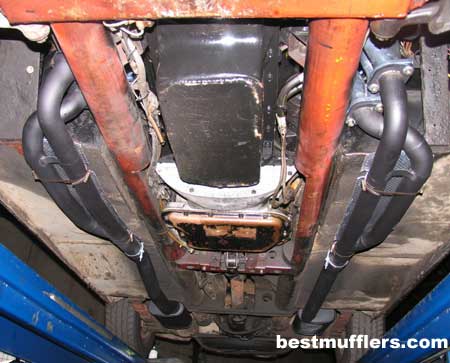

The pipes from the headers are twin 2" which merge into a twin 2 1/2" free flowing mild steel system Because of very little ground clearance the exhaust tends to get knocked around so i recommended a mild steel exhaust system, no point spending money on stainless steel on this car
The exhaust runs very close to the floor so heat shields are fitted to protect the floor from heat transfer from the exhaust

Move Over Image

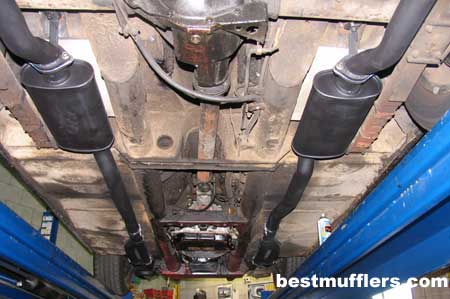

the four original exhaust mounts to support the mufflers were salvaged and reused, flanging the muffler enables the full system to be remove in under ten minutes

Move Over Image

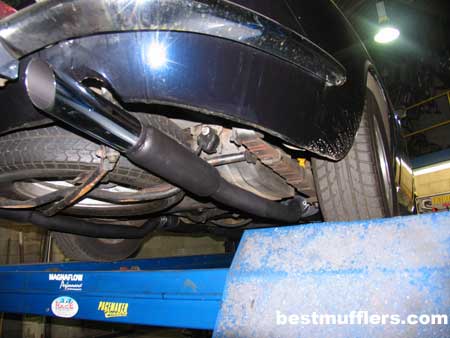

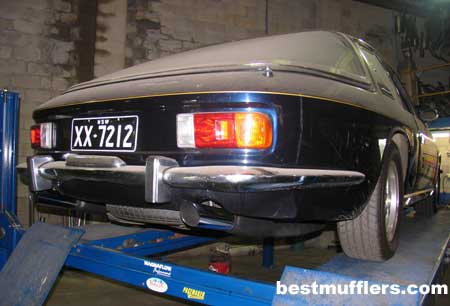

rear resonators have also been fitted to
help reduce the noise without hindering performance, the chrome tips are 3"

Move Over Image
